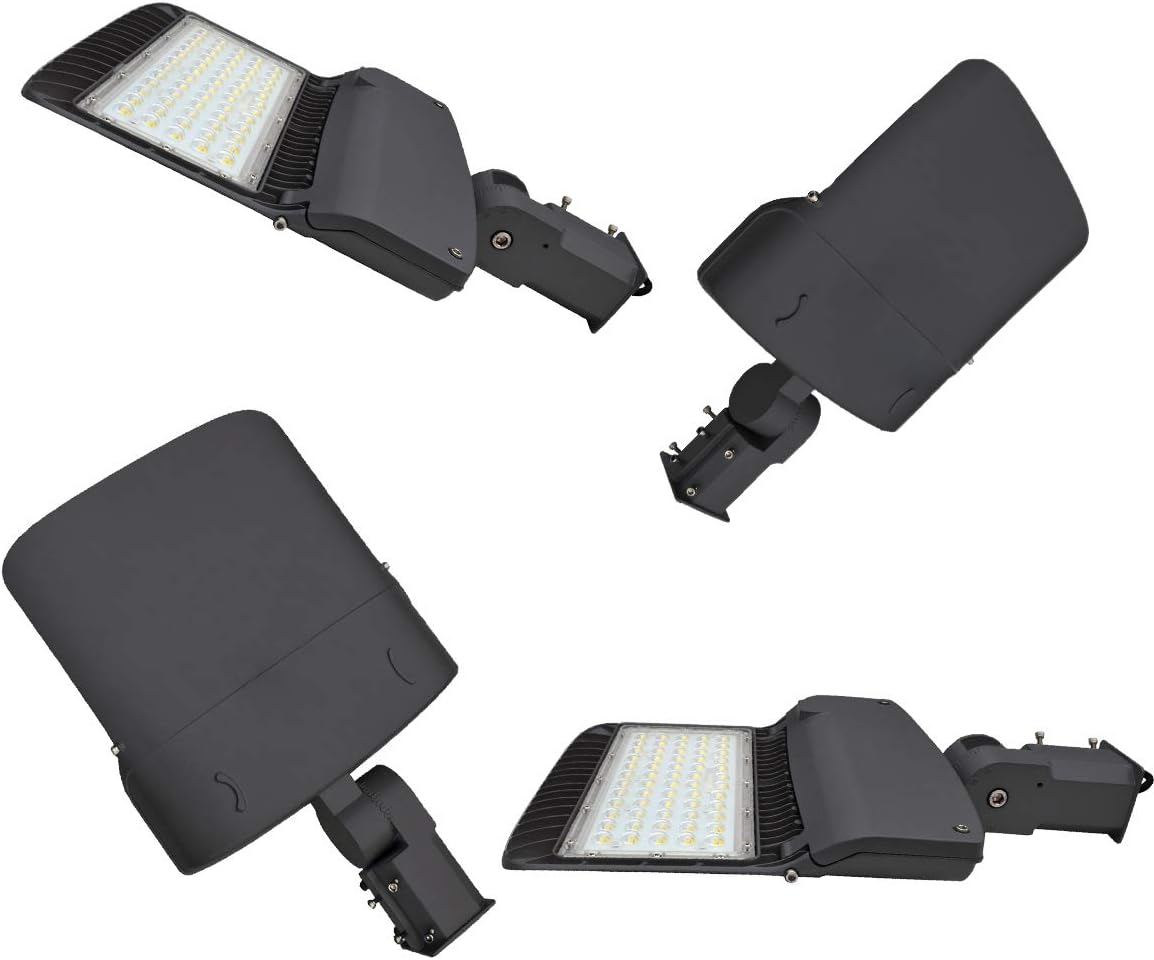

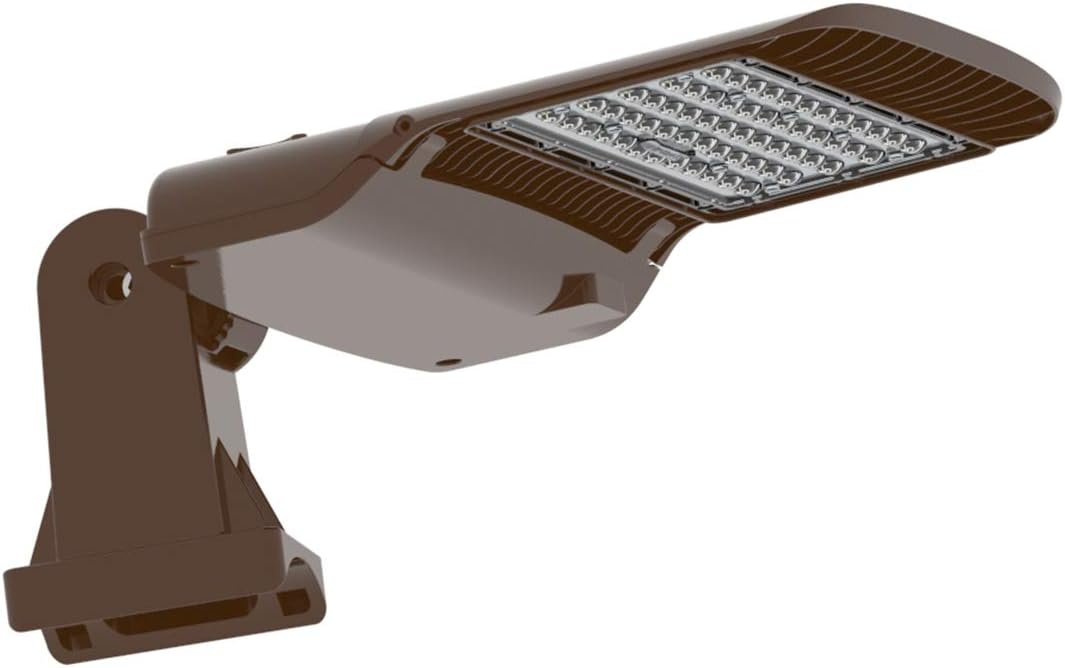

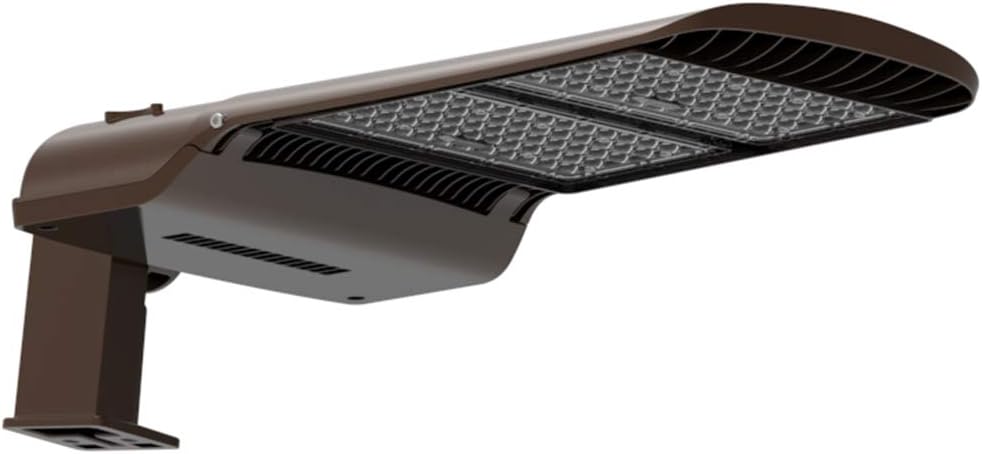

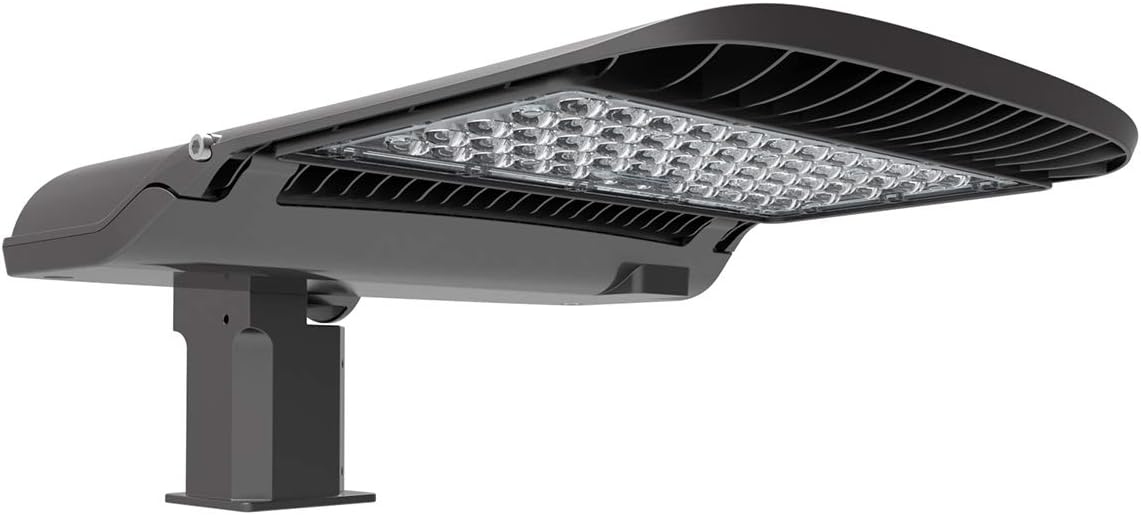

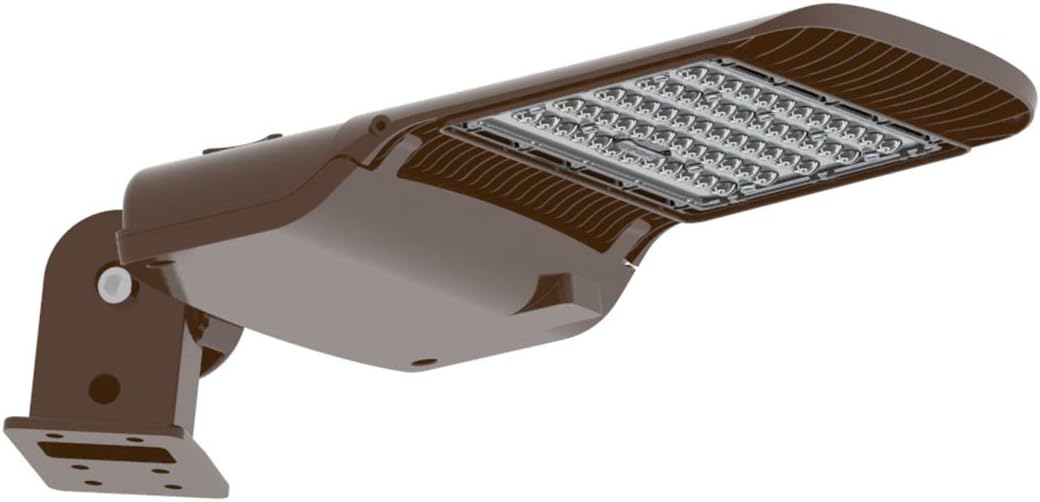

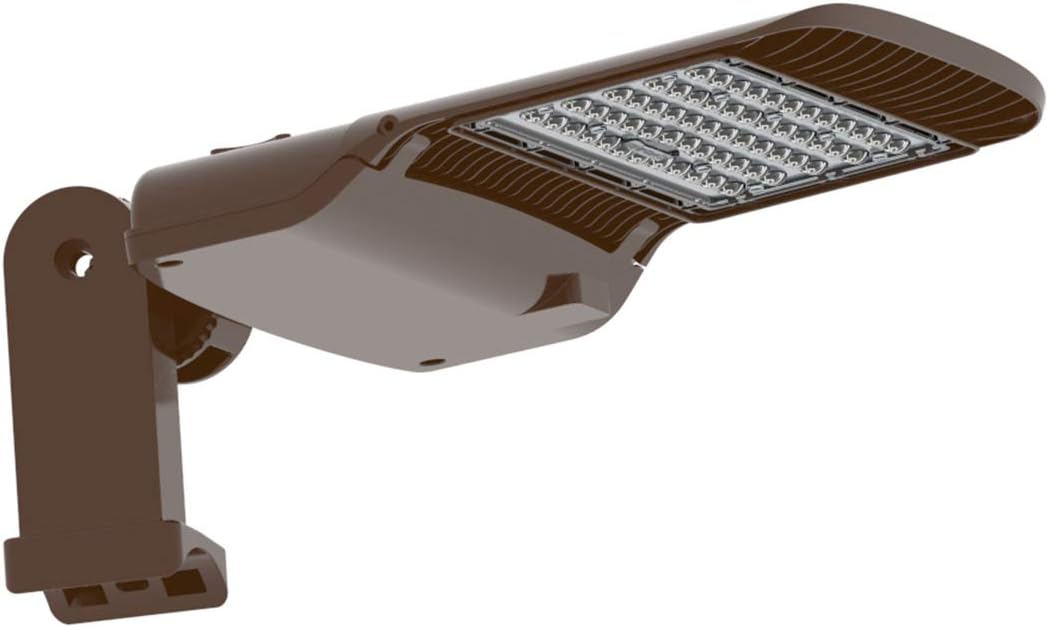

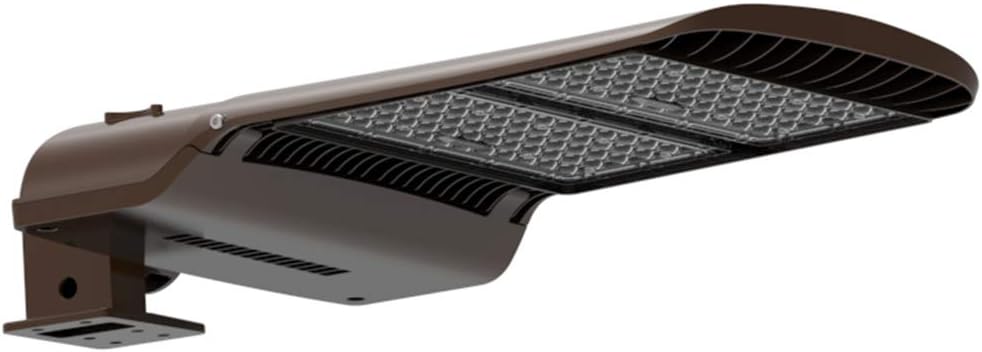

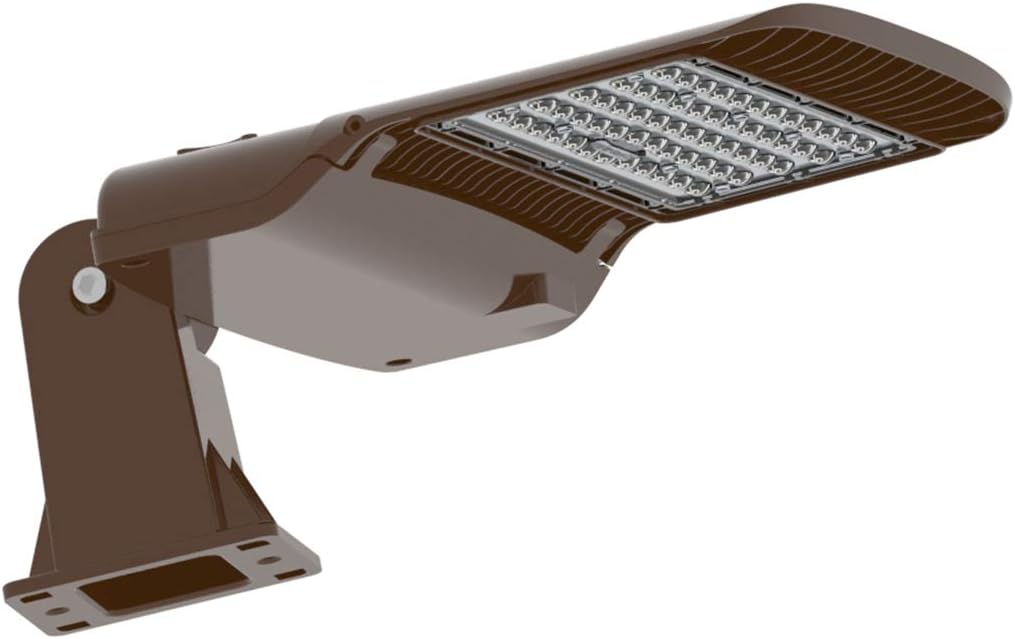

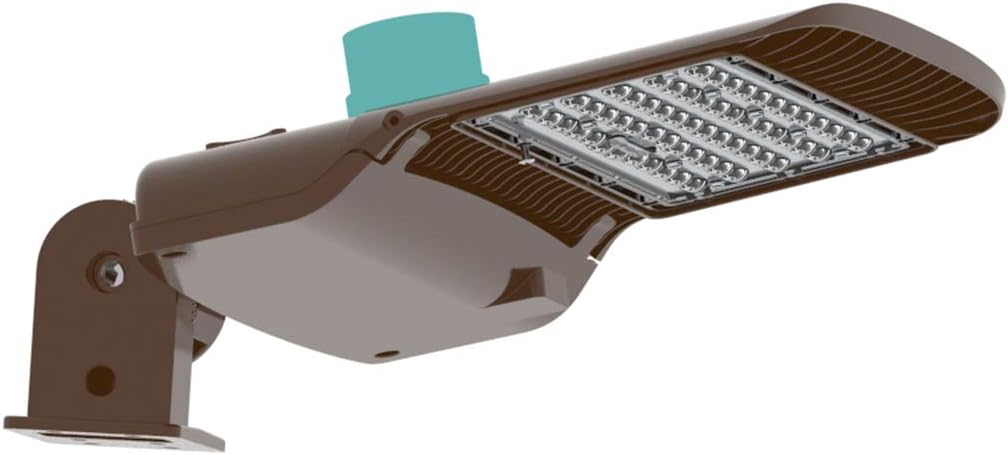

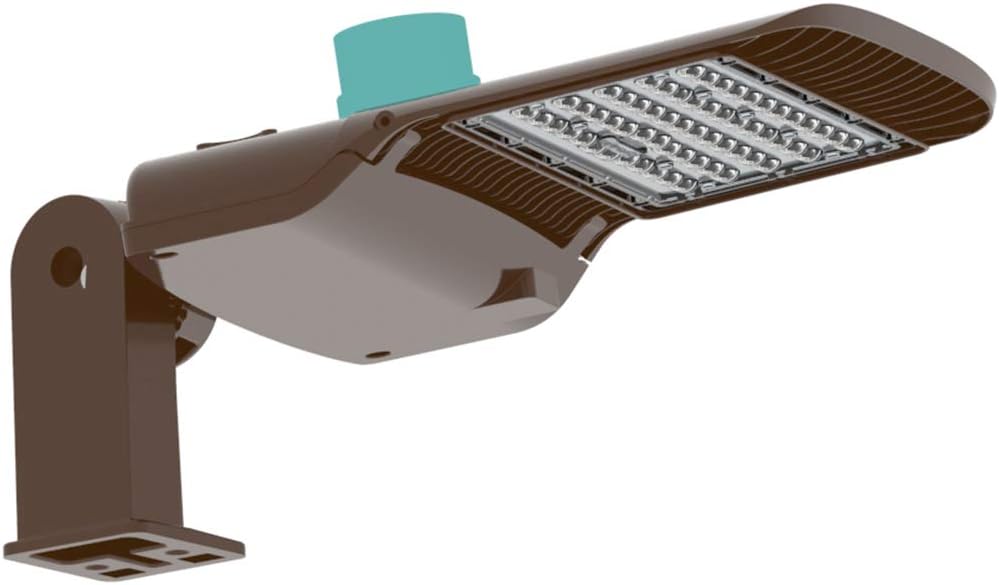

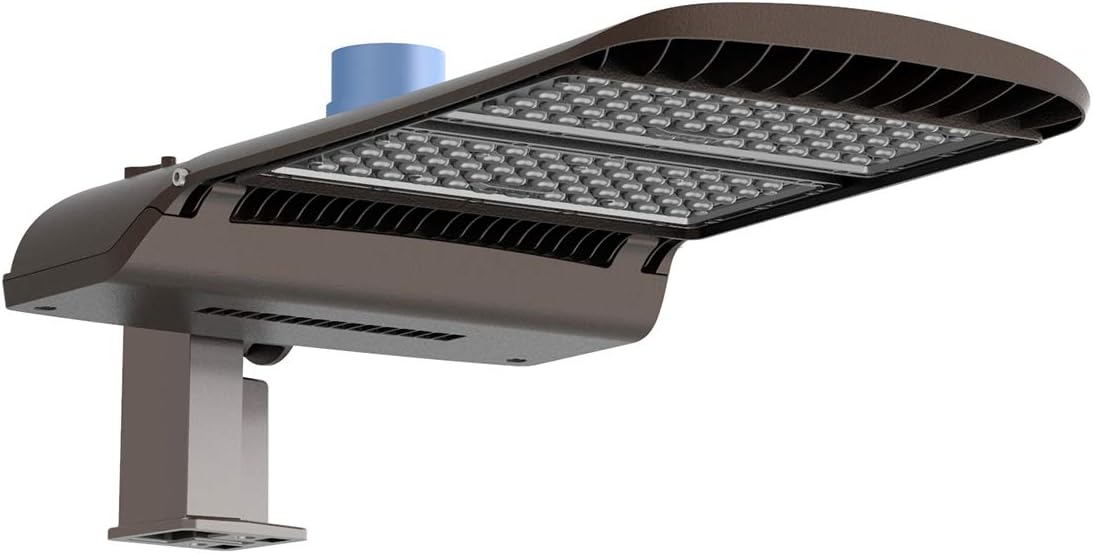

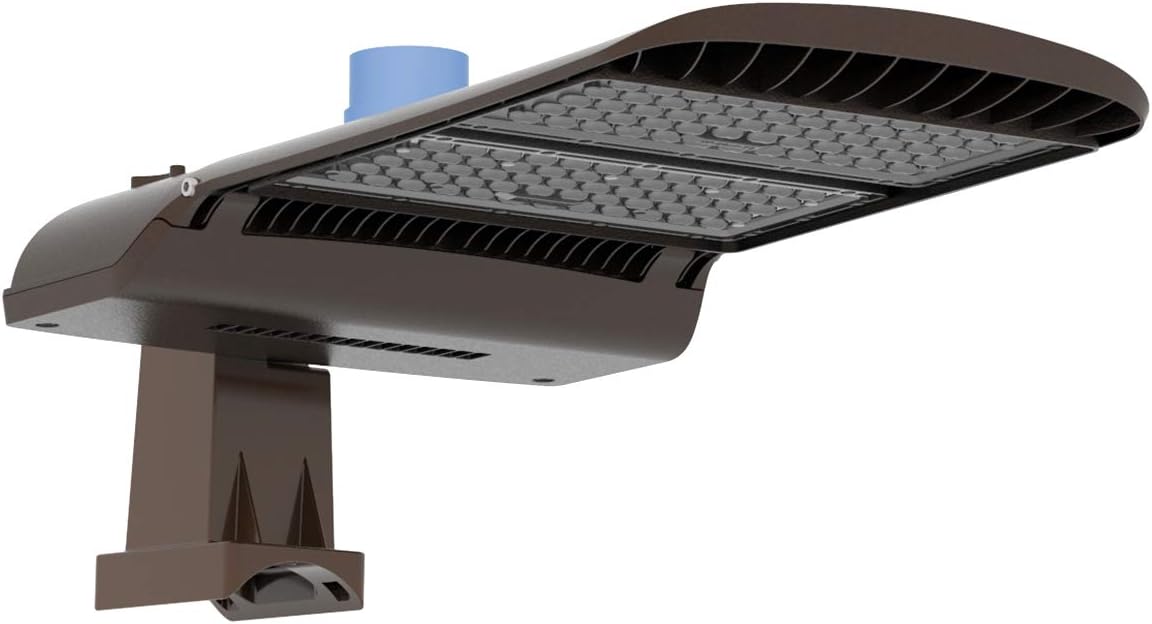

KAWELL 100W LED Parking Lot Light - 13000LM Square Pole Mount with Optional Photocell 5000K

Versatile LED Parking Lot Light for Square Pole Applications

Designed specifically for square pole installations, the KAWELL 100W LED Parking Lot Light offers exceptional flexibility with 6 different mounting configurations. Delivering 13,000 lumens of bright, energy-efficient illumination, this commercial-grade shoebox light is perfect for parking lots, streets, and outdoor areas that require square pole compatibility. Available with optional photocell for automatic dusk-to-dawn operation.

Key Features & Benefits

• Square Pole Optimized: Specifically designed for square pole mounting with 6 versatile mounting options
• High-Output Performance: 13,000 lumens provides excellent visibility and security lighting

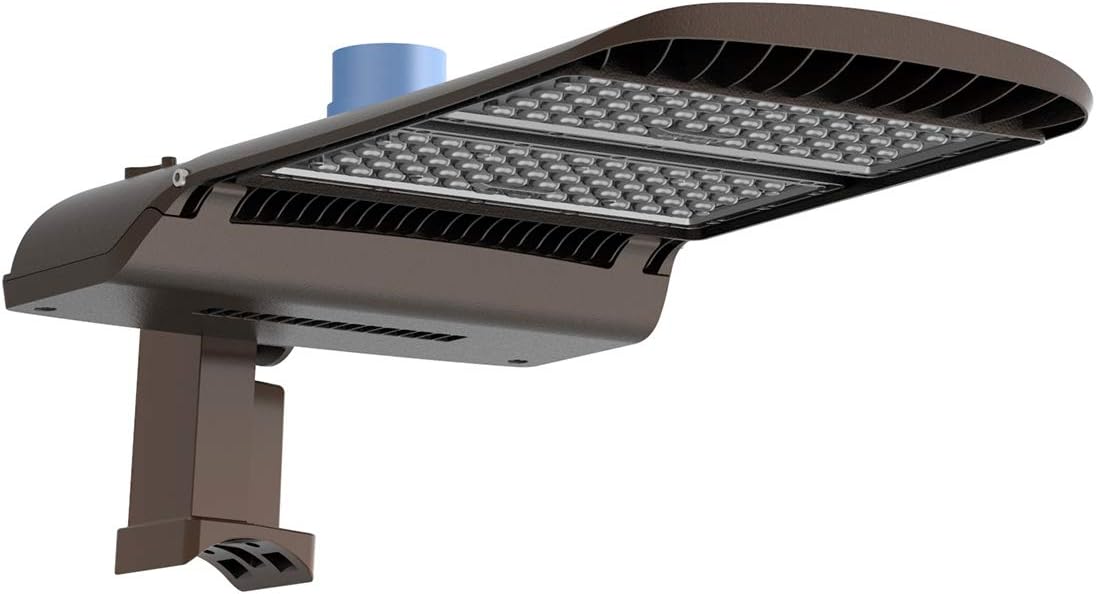

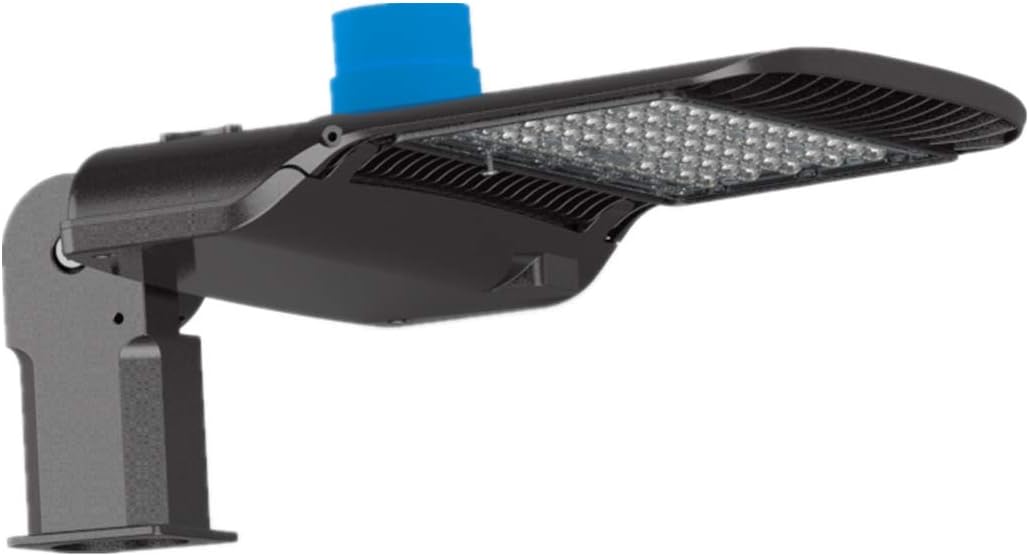

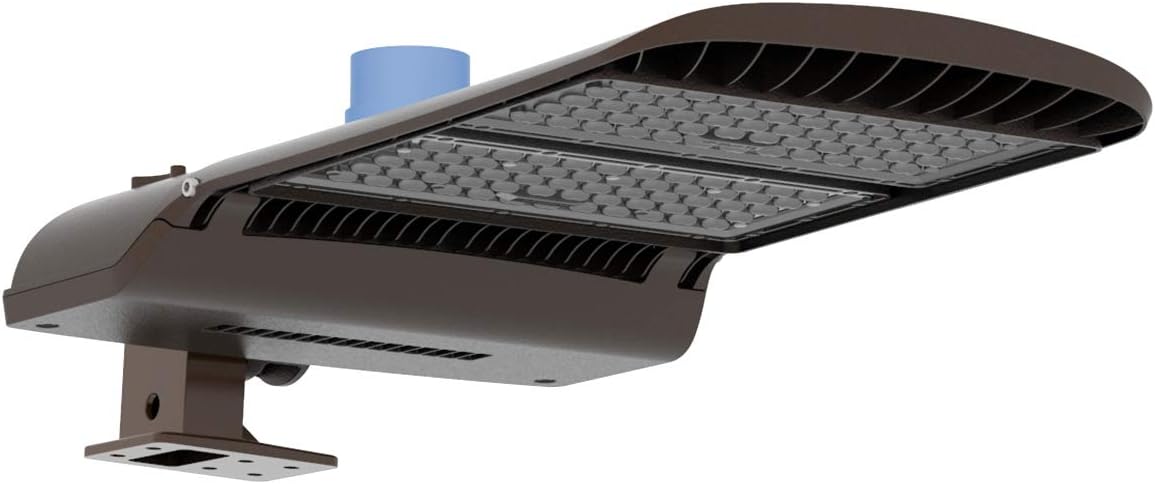

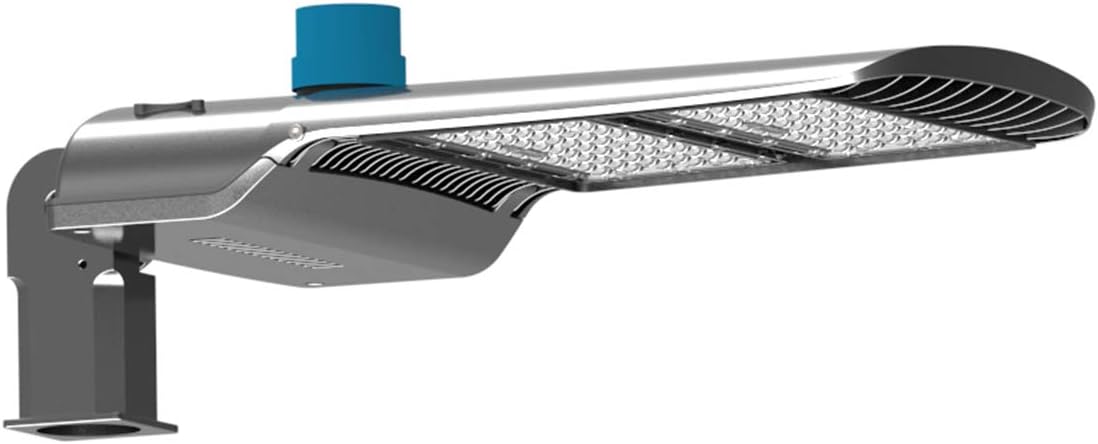

• Optional Photocell: Choose models with built-in dusk-to-dawn sensor for automatic operation
• Energy Efficient: 100W LED replaces 250-300W traditional fixtures, saving up to 70% on energy costs
• Universal Voltage: AC 100-277V compatible with any commercial electrical system
• DLC & ETL Certified: Premium certifications qualify for utility rebates nationwide

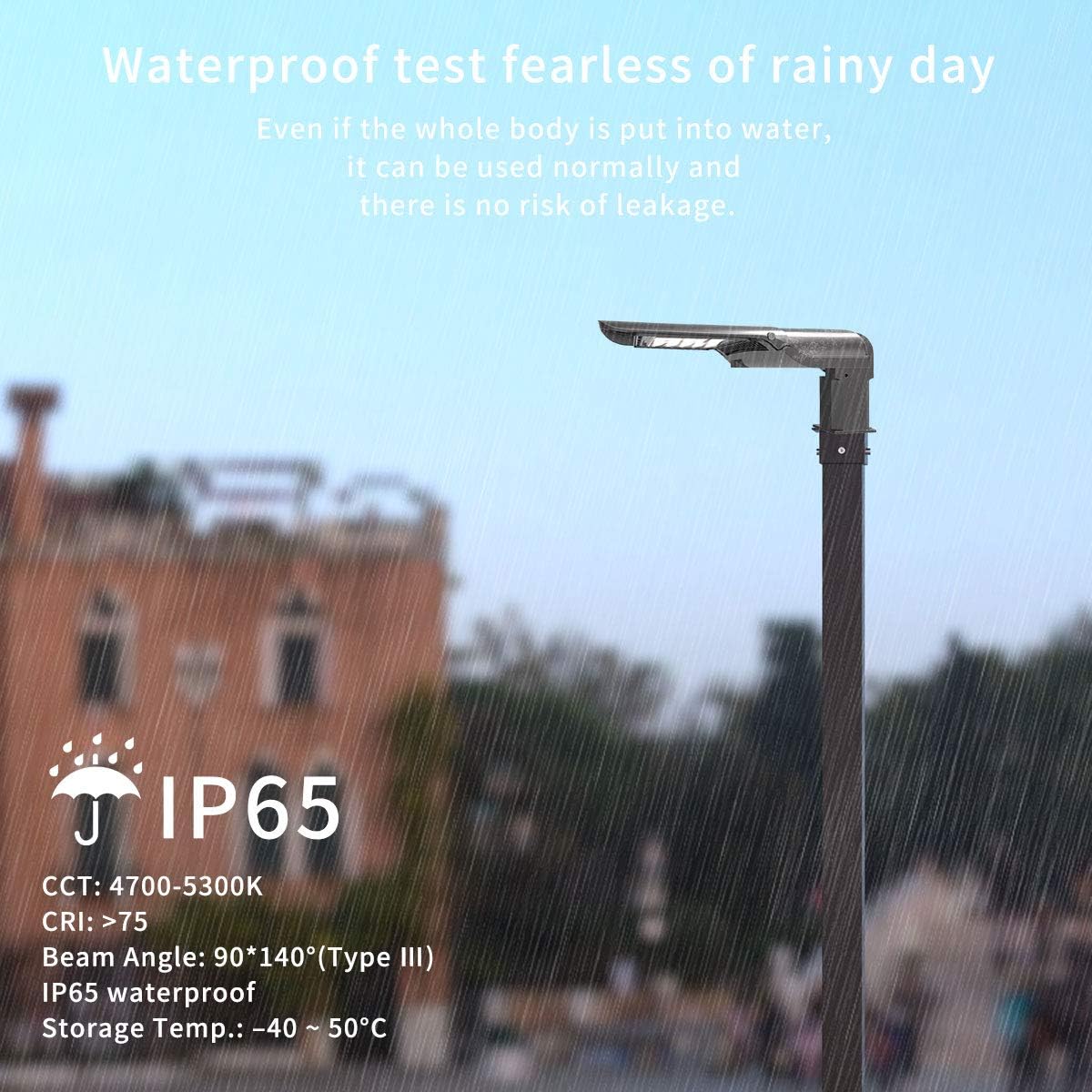

• IP65 Weatherproof: Aluminum alloy housing withstands harsh outdoor conditions
• Type III Distribution: 90° x 140° beam angle provides optimal light distribution for parking areas
• Long Lifespan: 50,000+ hours backed by 5-year manufacturer warranty

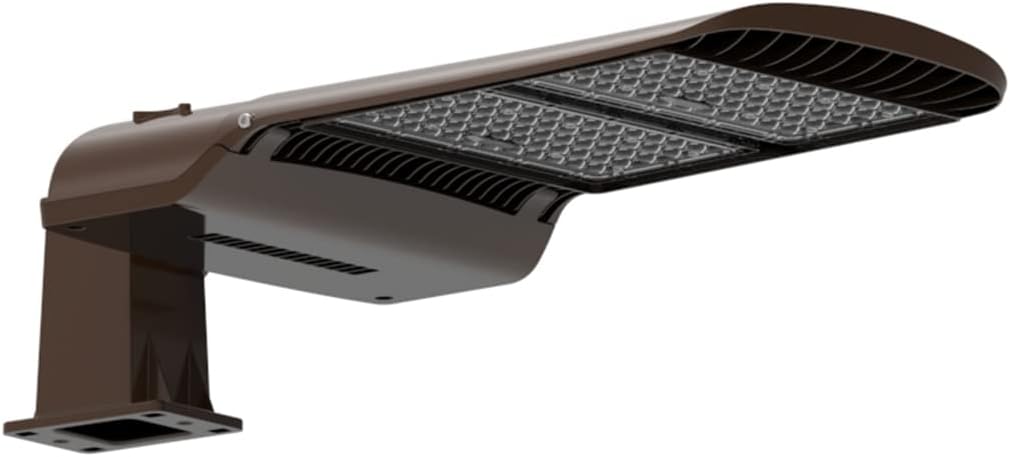

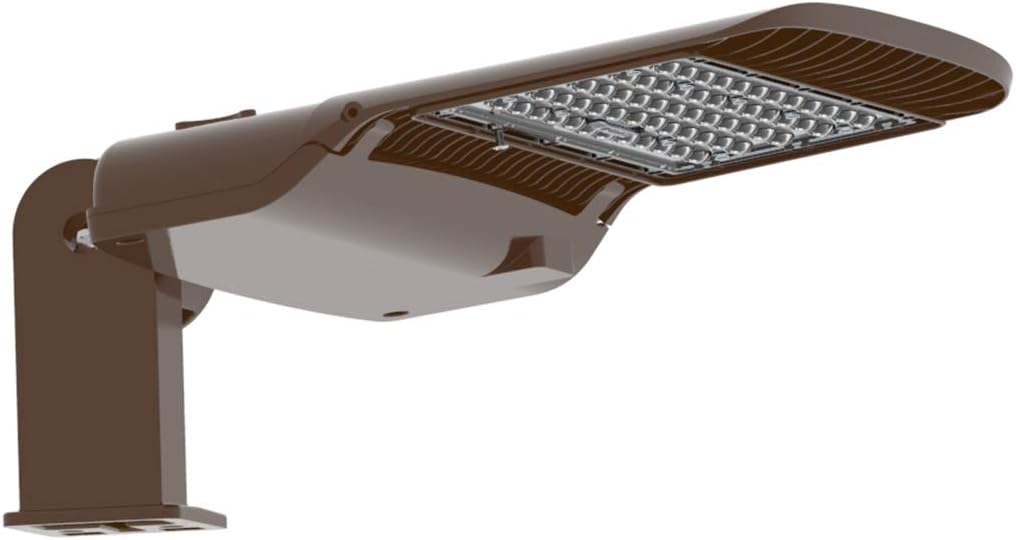

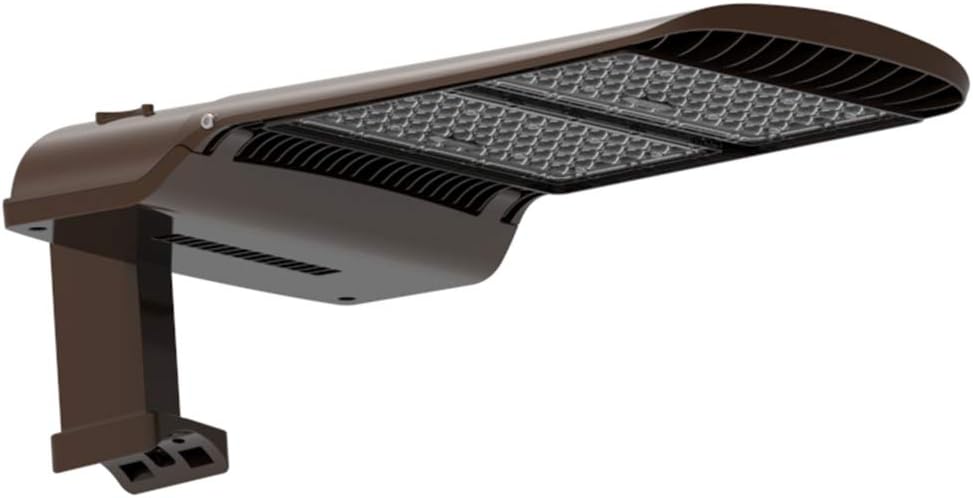

Six Mounting Configurations

This versatile fixture accommodates various installation needs:

• Type A: Slip fitter for round poles
• Type B2: Square pole bracket (small)
• Type C2: Square pole bracket (medium)
• Type D2: Square pole bracket (large)
• Type E2: Square pole bracket (extra-large)
• Type F2: Trunnion mount for walls or ceilings

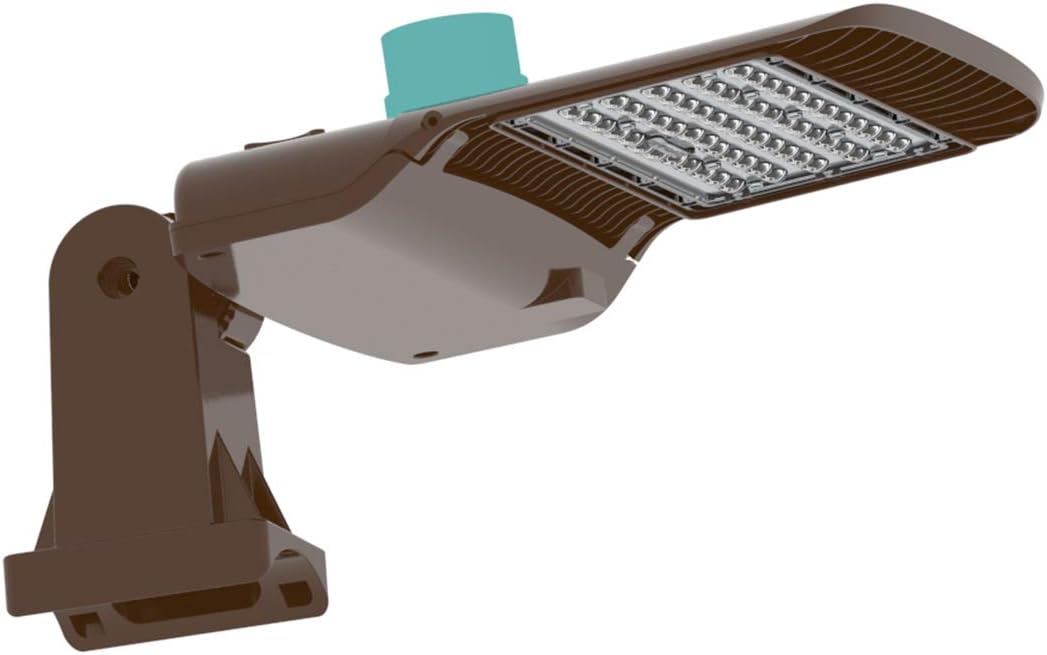

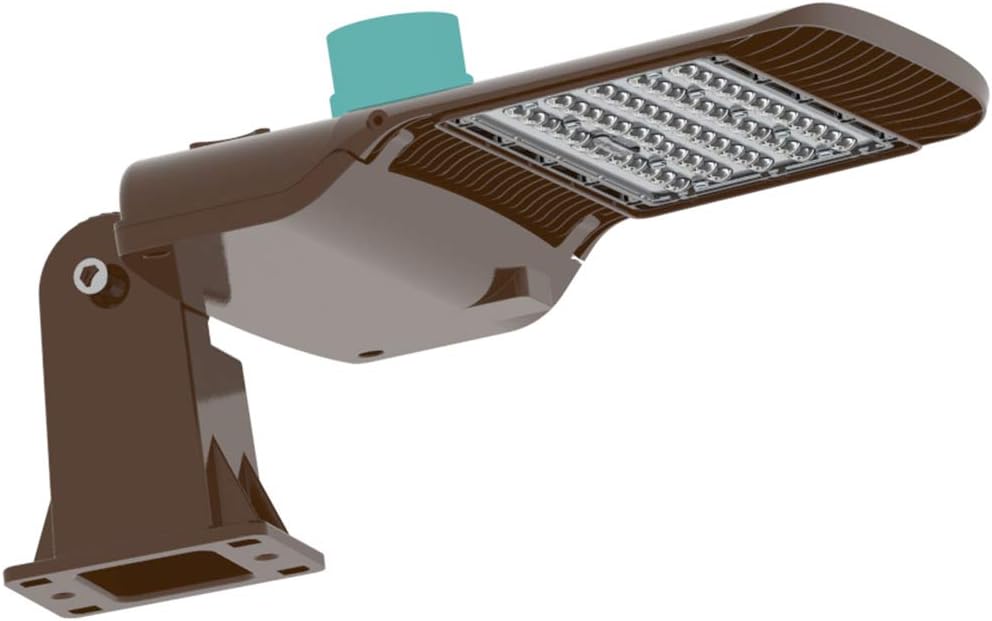

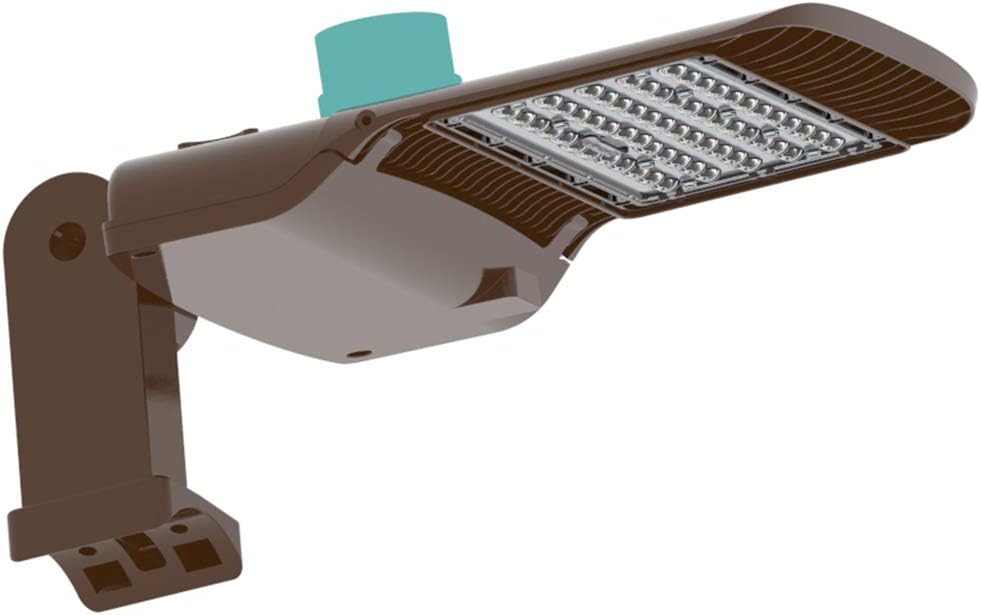

Photocell Options

Choose the configuration that best fits your needs:

• Standard Model: Manual control or timer-based operation
• With Photocell: Automatic dusk-to-dawn operation - light turns on at sunset, off at sunrise

The photocell option eliminates the need for timers or manual switching, ensuring lights operate only when needed for maximum energy savings.

Technical Specifications

• Wattage Options: 100W, 150W, 200W, 300W
• Luminous Output: 13,000 lumens (100W model)
• Color Temperature: 5000K (Daylight White)
• Input Voltage: AC 100-277V (Universal)
• Frequency: 50-60Hz
• Power Factor: >0.90
• LED Chips: 104 pcs premium 3030 LEDs
• CRI: >75 (Good Color Rendering)
• Beam Angle: 90° x 140° (Type III Distribution)

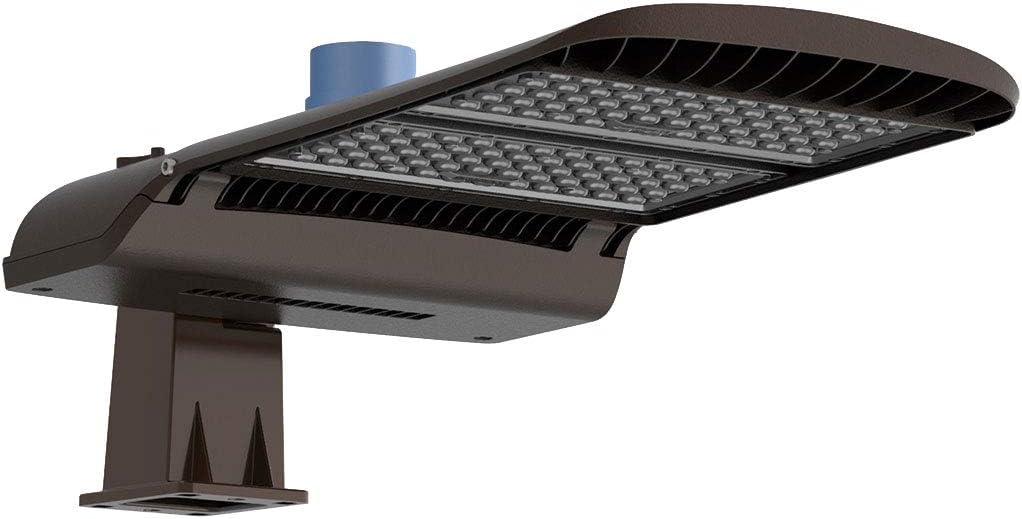

• Photocell: Optional built-in dusk-to-dawn sensor
• IP Rating: IP65 (Weatherproof)
• Operating Temperature: -40°F to 122°F (-40°C to 50°C)

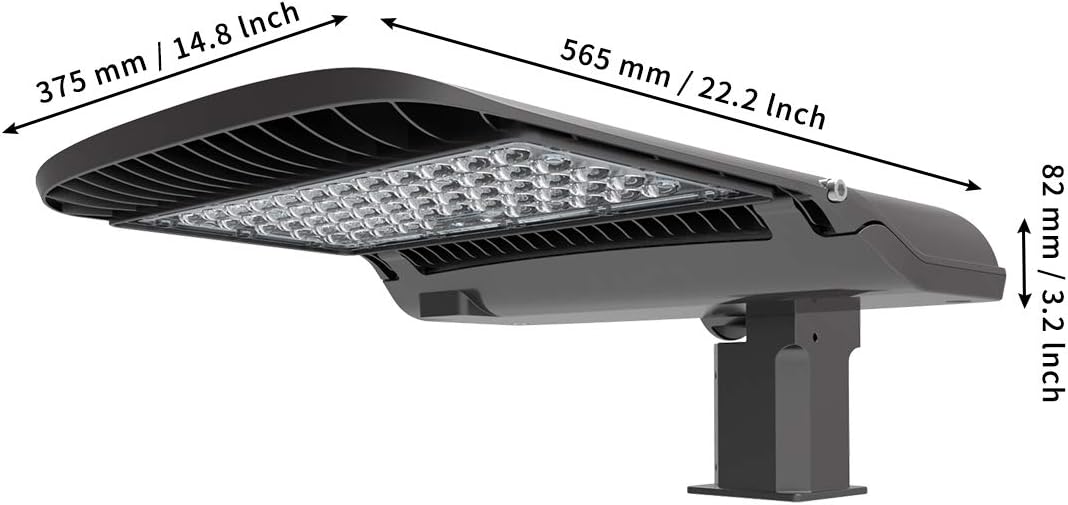

• Dimensions: 22.2" x 14.8" x 3.2"
• Weight: 10.6 lbs (100W model)
• Housing: Aluminum alloy with bronze finish
• Lens: Premium PC optics for optimal light distribution
• Certifications: DLC, ETL, CE, RoHS
• Warranty: 5 Years

Ideal Applications

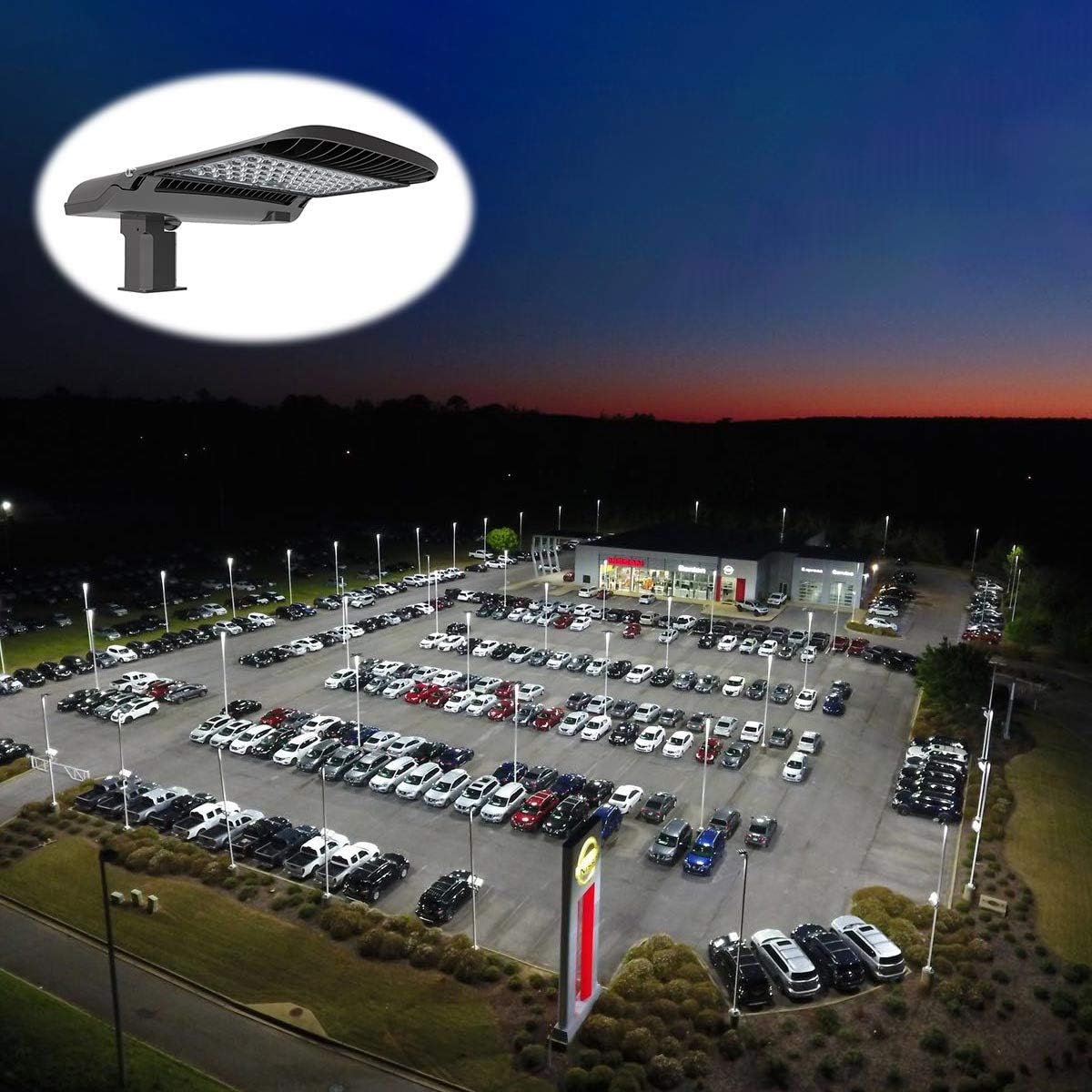

• Parking lots with square pole infrastructure
• Commercial streets and roadways
• Shopping center parking areas
• Industrial facility lighting
• Campus walkways and parking
• Municipal street lighting projects
• Gas station and convenience store lots
• Warehouse and distribution center perimeters
• Sports facility parking areas

Type III Light Distribution

The Type III beam pattern is specifically designed for parking lot and roadway applications:

• Provides forward throw of light along roadways and parking aisles
• 90° x 140°beam angle ensures even coverage without dark spots
• Minimizes light trespass and glare
• Ideal for pole spacing of 100-150 feet
• Meets IES (Illuminating Engineering Society) standards for parking lot lighting

Easy Installation

Quick Setup: All mounting hardware included for your selected configuration. The modular design allows for fast installation with standard tools.

Pole Compatibility: Works with various square pole sizes - simply select the appropriate mounting bracket (B2, C2, D2, or E2) for your pole dimensions.

Wiring: Standard electrical connections with clearly labeled terminals. Photocell models include pre-wired sensor for plug-and-play installation.

Energy Savings & ROI

• Replacement Value: 100W LED replaces 250-300W metal halide or HPS fixtures
• Annual Savings: $150-200 per fixture per year in electricity costs
• Photocell Efficiency: Automatic operation ensures lights run only when needed
• Maintenance Savings: 50,000+ hour lifespan eliminates frequent bulb changes
• Rebate Eligible: DLC certification qualifies for utility rebates in most U.S. states
• Typical Payback: 1.5-2.5 years depending on electricity rates and rebates

Premium Construction

• Aluminum Alloy Housing: Lightweight yet durable, corrosion-resistant construction
• Bronze Powder Coat Finish: Professional appearance that resists fading and weathering
• PC Optics Lens: High-quality polycarbonate lens ensures optimal light transmission and distribution
• IP65 Sealed Design: Complete protection against dust and water for reliable outdoor performance
• Advanced Thermal Management: Efficient heat dissipation extends LED lifespan

Why Choose KAWELL Square Pole LED Lighting?

KAWELL's square pole LED parking lot lights are engineered for commercial applications where square pole infrastructure is standard. With 6 mounting options, optional photocell control, and DLC/ETL certifications, these fixtures provide the flexibility and quality needed for professional lighting installations. The Type III light distribution ensures optimal coverage for parking lots and roadways while minimizing light pollution.

Upgrade your square pole lighting to energy-efficient LED technology and enjoy superior performance with significant cost savings.
